HP ProBook 850 G8
Motherboard Repair & BitLocker Recovery

The Intake & Customer Report

A corporate client submitted this HP ProBook 850 G8 via our nationwide mail-in repair service following a catastrophic power failure.

The device went completely black during operation and refused to accept a charge. Basic field diagnostics confirmed the USB-C power delivery handshake was non-functional. Because this was an executive machine, it contained highly sensitive operational data protected by active Windows BitLocker encryption, meaning standard hard drive migration was not a straightforward option.

Advanced Motherboard Diagnostics

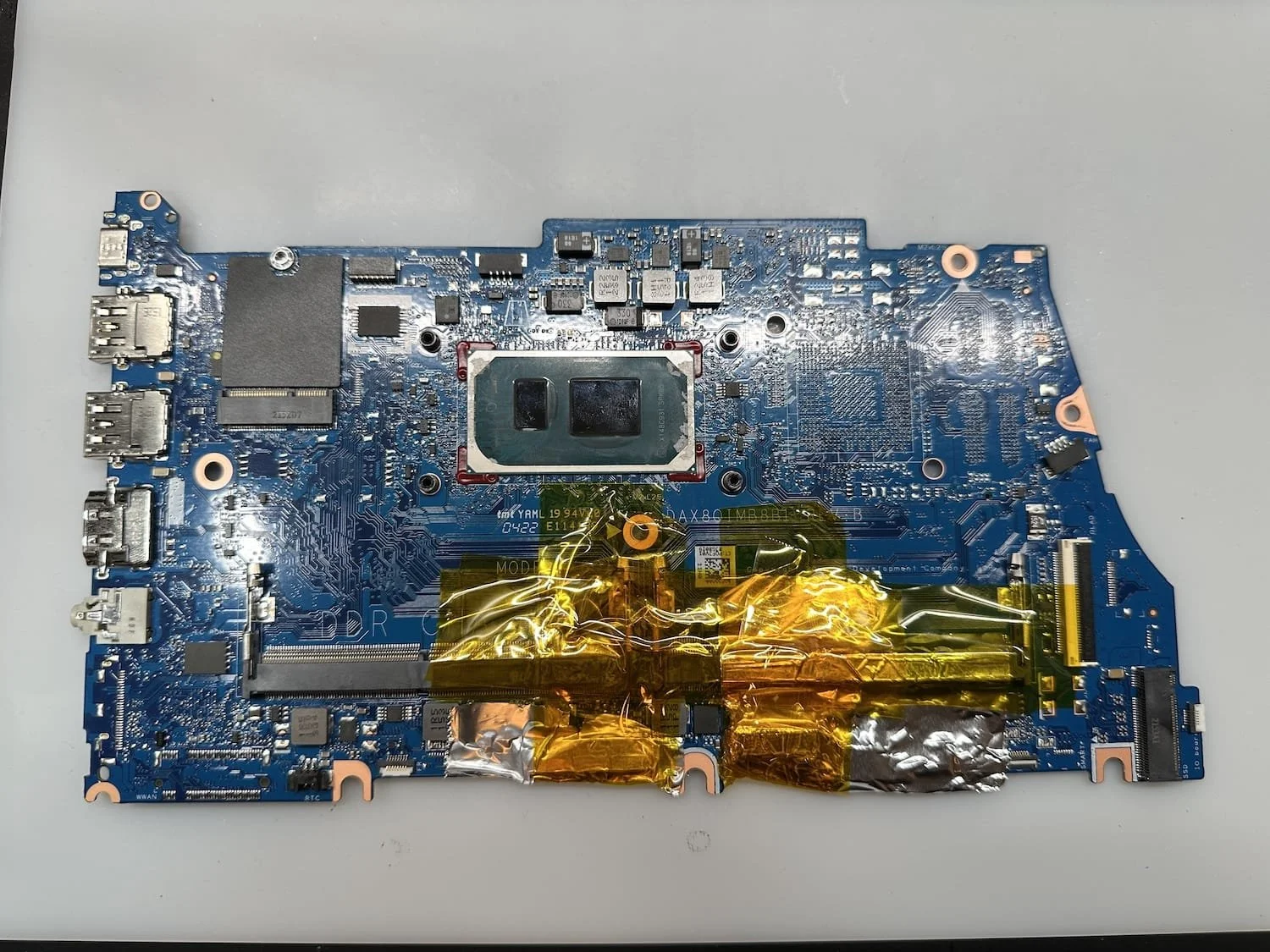

Our micro-soldering team safely extracted the motherboard to execute diagnostic routines on the primary power generation paths under a microscope. When a motherboard is replaced completely by standard repair depots, the underlying cryptographic keys held within the physical Trusted Platform Module (TPM) chip are permanently lost, resulting in a severe BitLocker recovery key authentication nightmare for the user.

Injecting voltage safely into the primary system rail revealed an isolated thermal hotspot. A localized short circuit had formed on a small decoupling SMD capacitor sitting along the crucial 19V primary power delivery line. This low-resistance short was pulling down the main charging circuit, triggering the system's defensive internal overcurrent protection thresholds.

The Repair and Restorative Process

By fixing the client's original motherboard instead of replacing it, we ensure that the native TPM remains perfectly aligned with the client's existing Windows environment. The micro-soldering repair workflow proceeded as follows:

• 1
  Faulty Component De-Soldering

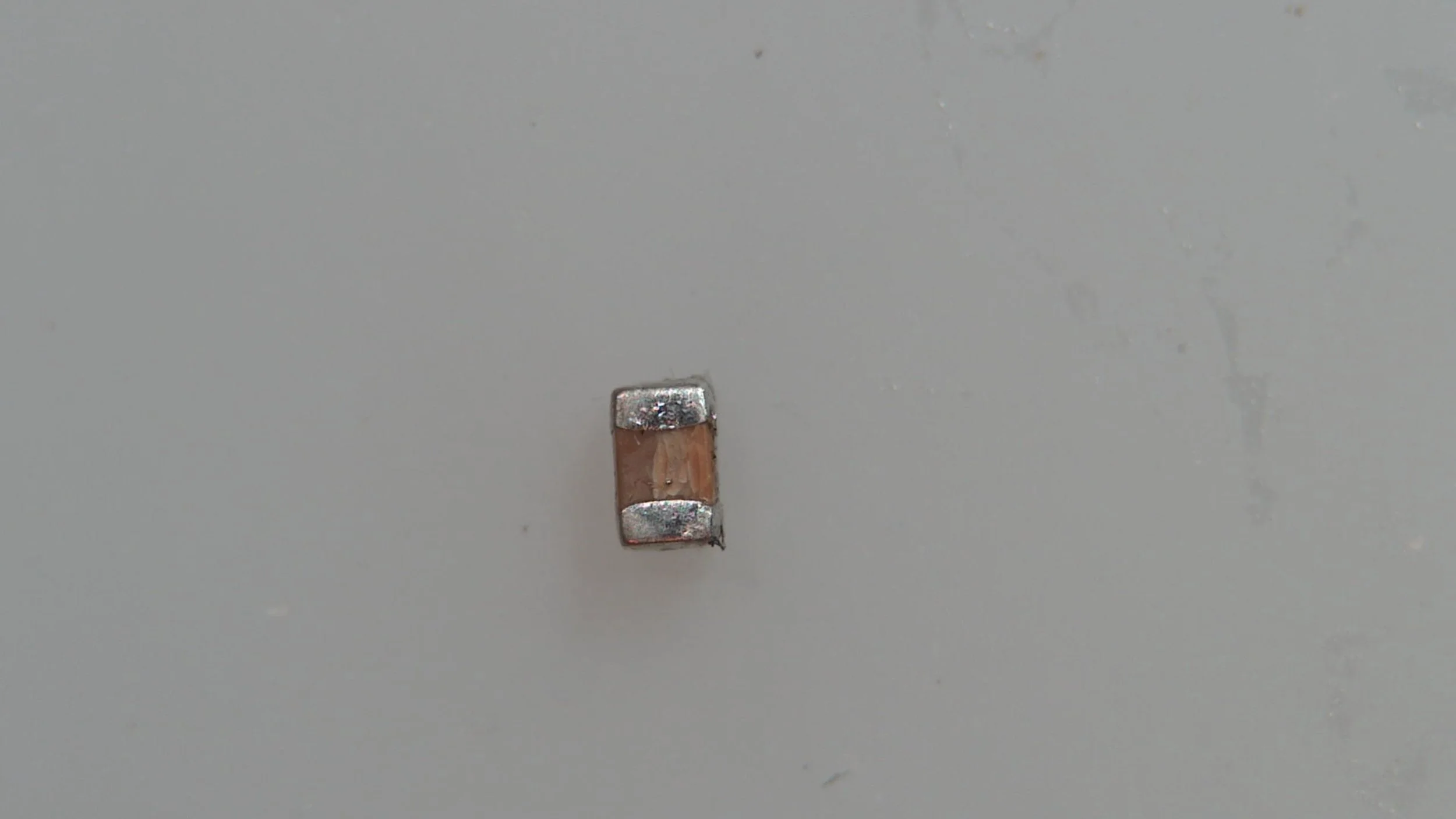

  Using a specialized hot-air rework station and precision tweezers, the shorted surface-mount capacitor was cleanly extracted from the multi-layer circuit board.

• 2
  Trace Integrity Validation

  The structural copper pads were thoroughly cleaned and probed with a digital multimeter to verify that the power line short circuit was entirely resolved.

• 3
  Precision Component Replacement

  A brand new, high-grade replacement capacitor matching original OEM specifications was micro-soldered back onto the motherboard power rail.

• 4
  Re-assembly

  The entire logic board was treated to remove residual micro-soldering flux before high-performance thermal paste was neatly reapplied to the cooling block.

Testing, Stability, and BitLocker Verification

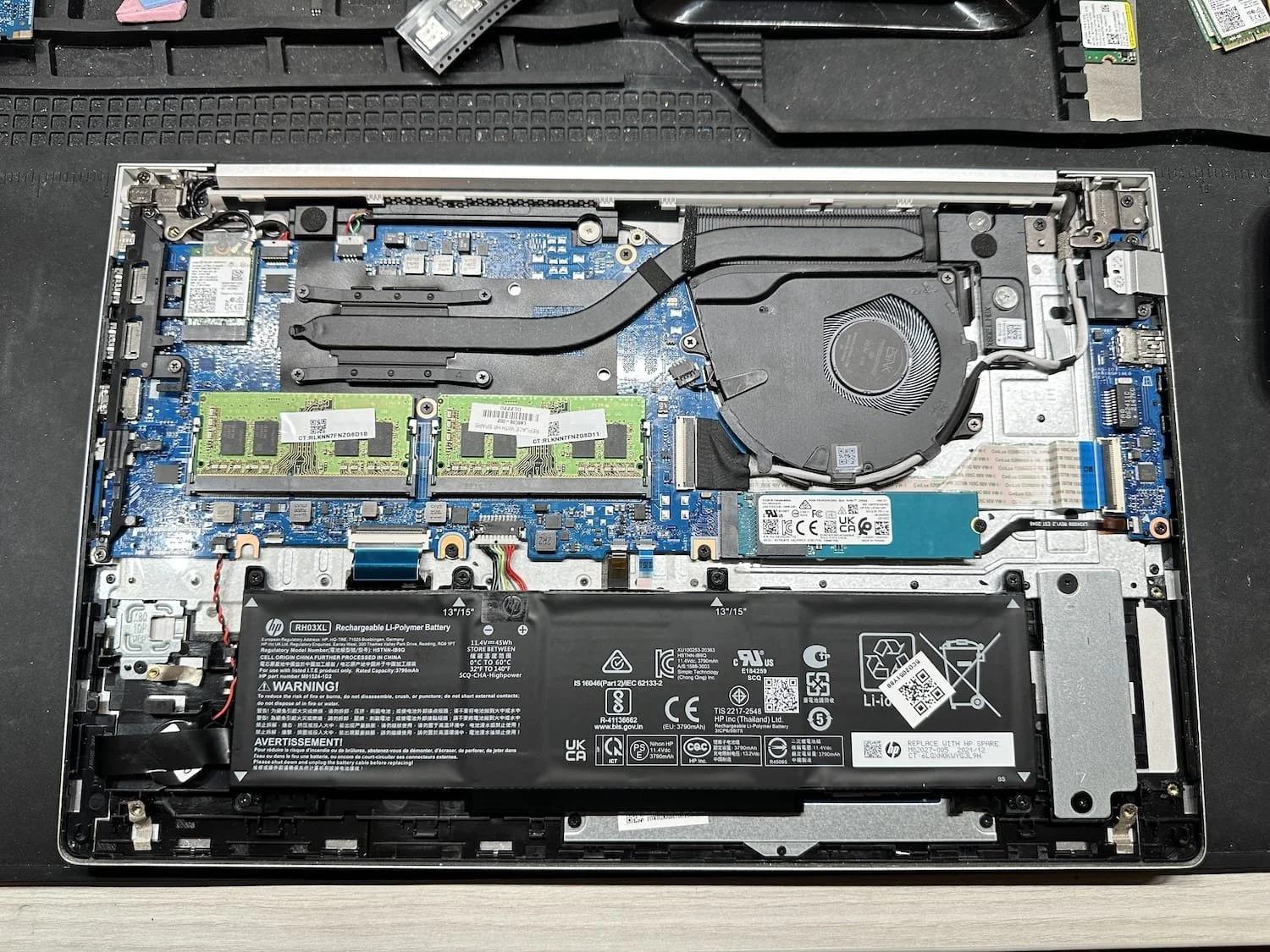

With the physical short circuit eradicated and power rails showing proper resistance values, the laptop was meticulously reassembled into its magnesium housing for validation testing:

• Power Negotiation: The USB-C power delivery circuit initialized instantly, safely drawing the correct voltage from the charger.
• Seamless Windows Boot: Because the original motherboard and native TPM chip were successfully preserved, the operating system bypassed any BitLocker recovery prompt, booting smoothly directly to the user login screen.
• System Load Validation: The hardware was subjected to a comprehensive 12-hour automated burn-in stress loop to guarantee sustained performance.

Ultimately, choosing expert component-level micro-soldering saved the client's critical files, eliminated organizational downtime, and delivered a permanent, sustainable fix for a fraction of the cost of a manufacturer board replacement.
