Dell XPS 15 (9530)
Water Damage Repair Case Study

The Intake & Customer Report

The premium ultrabook arrived at our laboratory via mail-in service totally unresponsive after a water spill occurred across the keyboard matrix.

The client reported that the system abruptly shut down when the liquid made contact. Diagnostic triage on our bench power supply confirmed the machine was trapped at a stagnant 5V draw, refusing to negotiate up to the standard 20V laptop charging line. Initial isolation steps verified that the external power adapter worked flawlessly; the malfunction was definitively restricted to a catastrophic logic board failure.

Advanced Motherboard Diagnostics

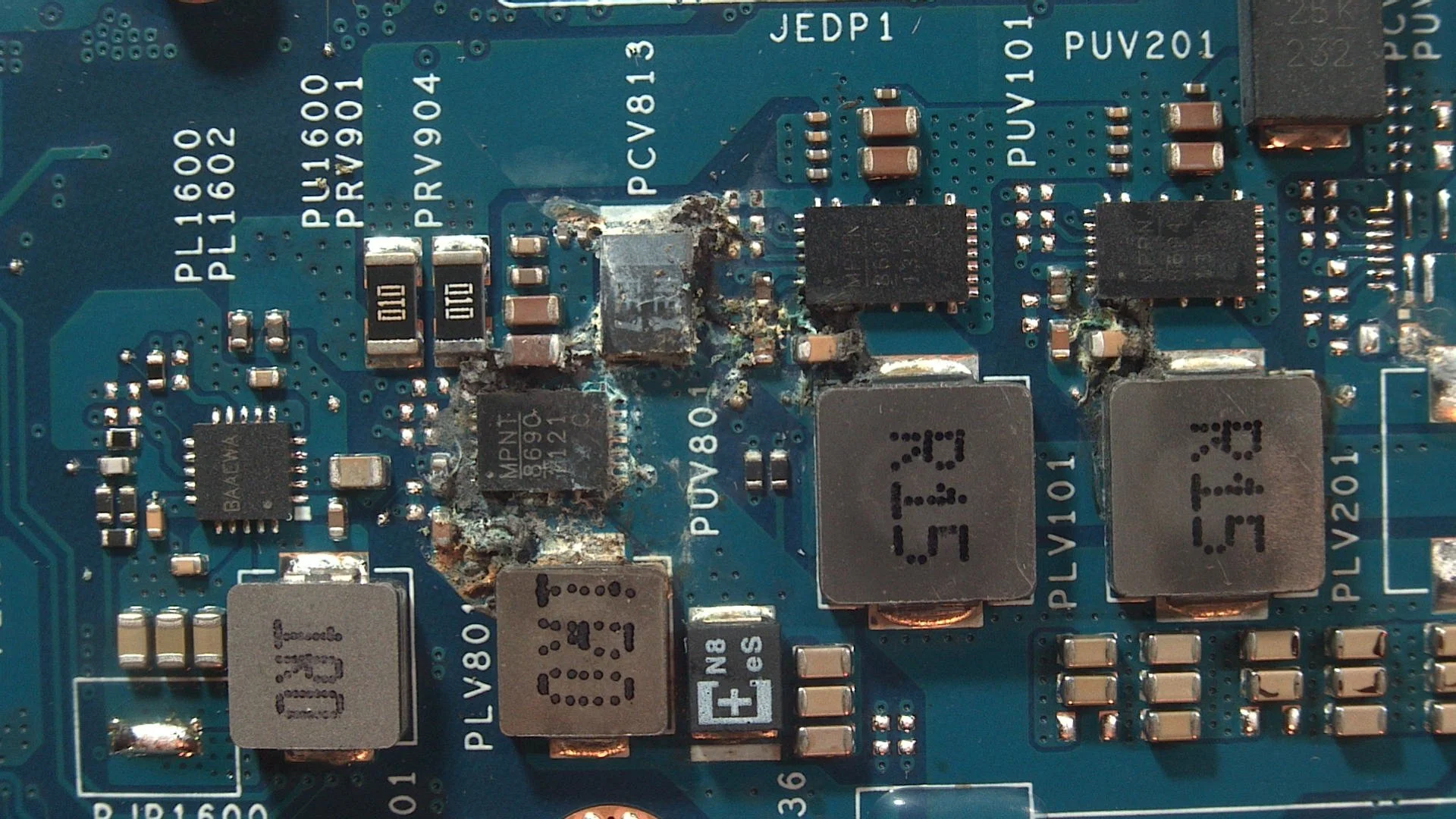

Our micro-soldering specialists extracted the motherboard for macro-inspection under the microscope. Spills on dense modern PCB surfaces trigger rapid degradation due to voltage interaction with the fluid's mineral content.

On this specific XPS 15 logic board, heavy copper oxide scaling had formed squarely over the primary 3.3V power rails and adjacent USB-C power delivery management circuitry. This accumulation built a highly conductive low-resistance path, forcing the system's power management IC into an overcurrent safety lockdown.

The Repair and Restorative Process

To safely isolate the circuitry and repair the corroded regions without thermal shock to the CPU, our team carried out a multi-stage micro-soldering process:

• 1
  Ultrasonic Cleaning & Stripping

  The board was completely stripped and submerged into an automated ultrasonic chamber using tailored chemical solvents, thoroughly dissolving all sub-component microscopic corrosion residues.

• 2

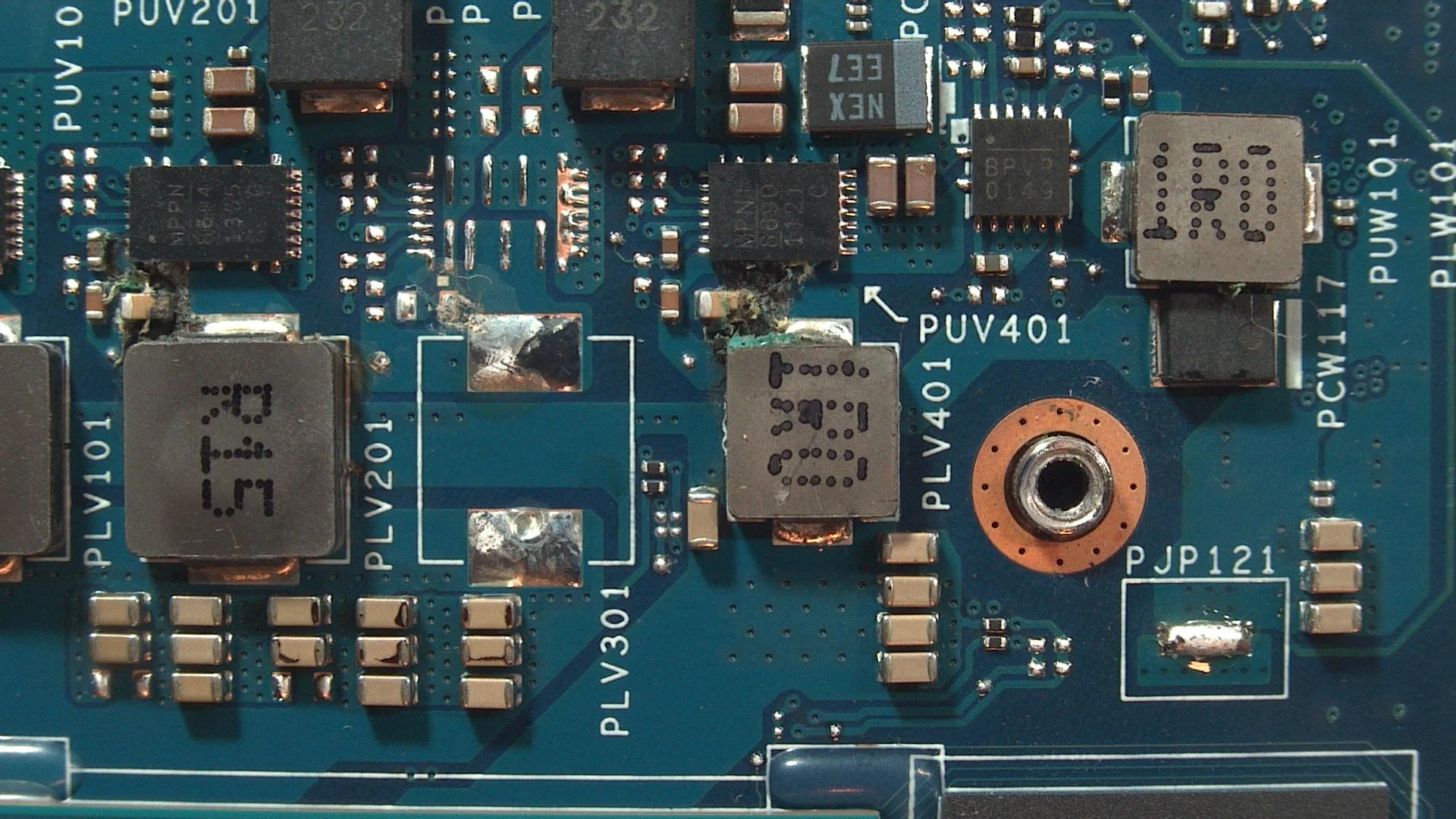

  Micro-Soldering Component Replacements

  Under magnification, three severely pitted SMD bypass capacitors and a degraded voltage rail resistor were desoldered and replaced with factory-spec hardware components.

• 3
  Trace Reconstruction

  A corrupted logic path leading to the USB-C control chip was micro-soldered using 0.02mm insulated jumper wire, safely re-establishing critical data lines.

• 4
  Advanced Thermal Management Re-application

  Premium high-stability thermal compounds were carefully applied across the CPU and discrete GPU cores prior to final assembly of the cooling architecture.

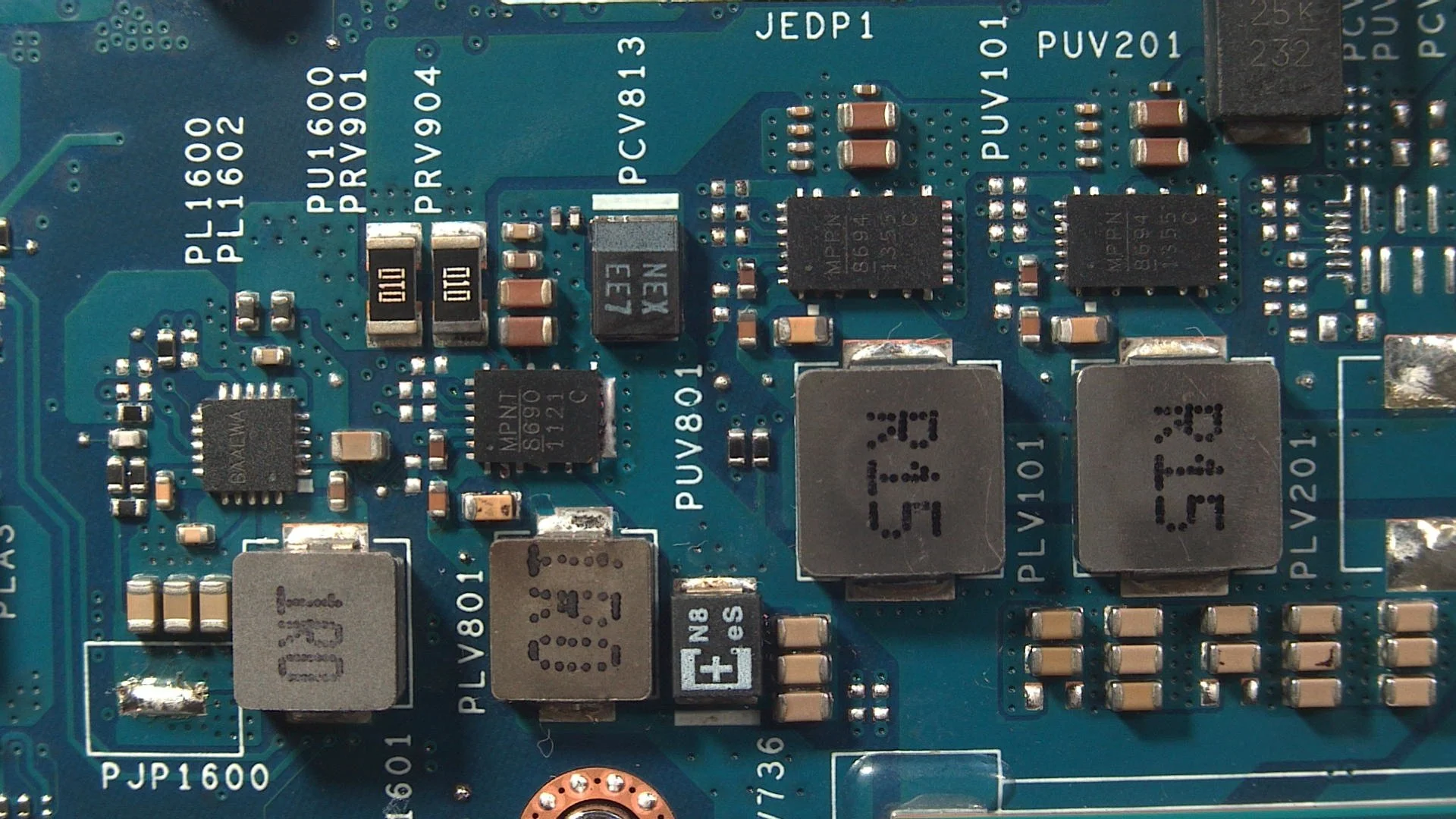

Testing, Stability, and Final Validation

Following surgical trace remediation and chemical restoration, the XPS 15 was reinstalled into its shell for exhaustive benchmarking:

• Correct 20V Rail Negotiation: The power management IC safely exited protection mode, pulling proper charge voltage seamlessly.
• Uncompromised POST and OS Launch: The system booted reliably past the Dell logo and seamlessly into the operating system environment.
• 12-Hour Stress Verification: Extended structural validation stress testing was executed under peak synthetic workloads to ensure total system thermal and voltage stability.

By opting for specialized board repair, the client recovered their valuable system, bypassed the high expenses of an official motherboard replacement, and maintained all local storage files completely intact.
